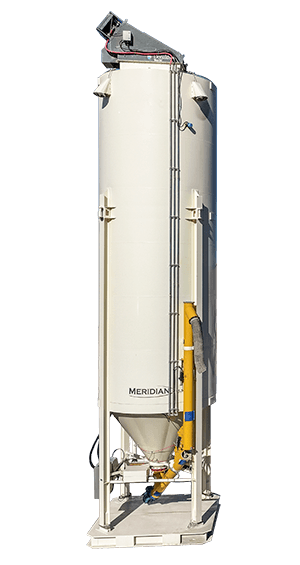

Meridian Mobile Silo

Mining Storage Brochure

Meridian Mobile Silos provide on-site bulk material storage without the infrastructure requirements of permanent installations. Designed for construction sites, transload facilities, remote operations, and temporary material storage applications, each silo can be transported, erected, and operational in approximately 15 minutes without the need for a crane, foundation, or major site preparation.

Designed for cement, fly ash, lime, barite, calcium, and other non-abrasive bulk materials, Meridian Mobile Silos combine high-capacity storage with rapid deployment and integrated material handling. Twin fill lines allow multiple trucks to unload simultaneously, while self-contained filling and discharge systems support operation using either site power or a generator in remote locations. Unlike traditional cement pigs, Mobile Silos occupy a smaller footprint, can fill and discharge simultaneously, and provide integrated dust collection, helping improve site productivity while reducing operational constraints.

Common Applications

Ready-mix and concrete operations
Construction and infrastructure projects
Transload facilities
Remote industrial sites

Model	Volume	Capacity (suspended, 75lbs./CF)	Capacity (packed, 90lbs./CF)	Height	Diameter	Base
Mobile Silo-160	3540 Cubic Feet	124 Ton \| 112 MT	159 Ton \| 144 M.T.	48′	11’6″	12’5″ x 12’5″

Standard Features

Engineer Designed for Sand up to 115 lbs./cu ft
Lifting Lugs
Powder Coat Finish
Self-contained hydraulics
Structural Steel Legs and Bracing
Weigh scale package

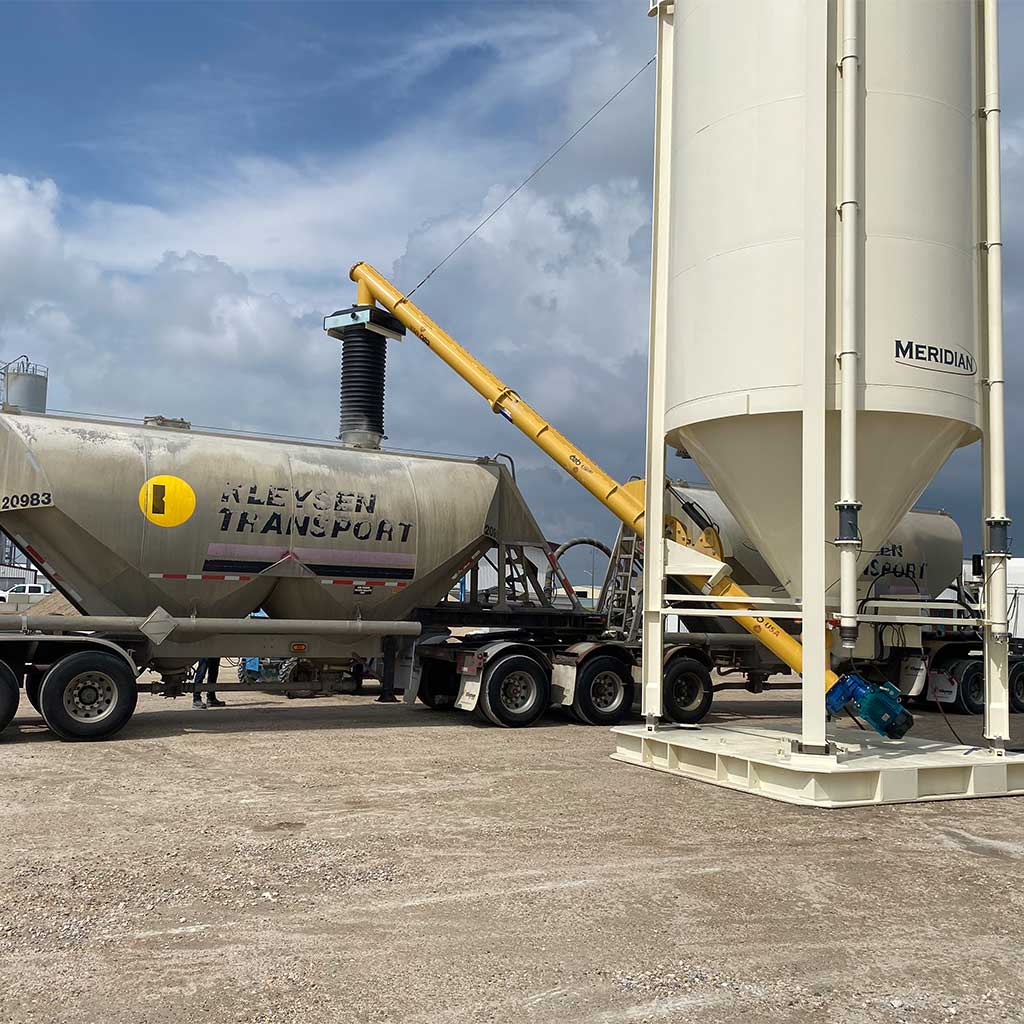

Meridian mobile silo set up beside a pneumatic tanker truck

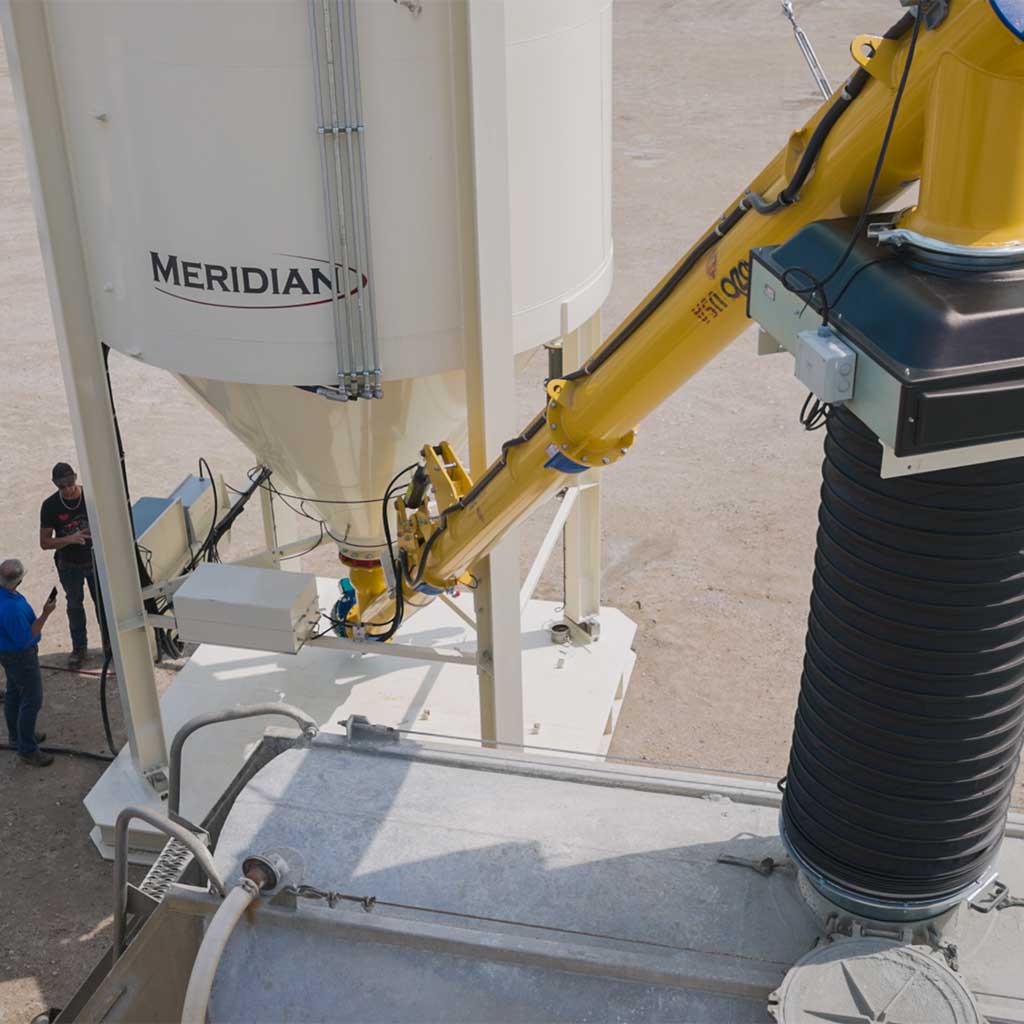

Discharge equipment at the base of a Meridian mobile silo

FAQ

Mobile Silos provide vertical storage that dramatically reduces site footprint requirements while offering capabilities that traditional cement pigs cannot, including simultaneous filling and discharge. Mobile Silos also utilize integrated dust collection and consume less energy by pressurizing transfer lines rather than the entire vessel.

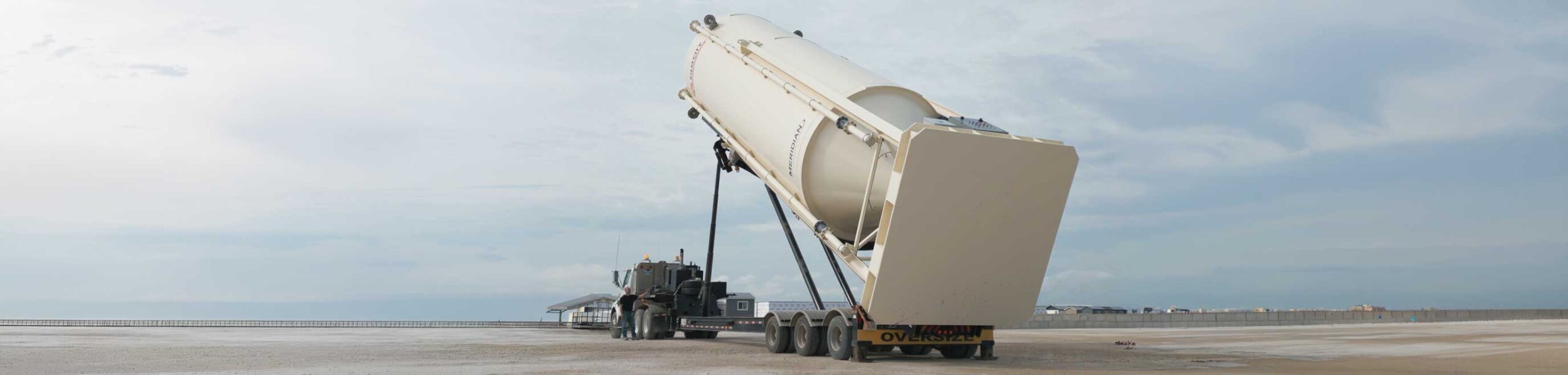

Meridian Mobile Silos are transported on a purpose-built trailer system and can be operational in approximately 15 minutes without requiring a crane. The heavy-duty skid base eliminates the need for foundations or extensive ground preparation.

By keeping bulk materials on-site and ready for use, Mobile Silos help reduce material handling delays, simplify logistics, and support continuous operation. Twin fill lines allow faster unloading, while integrated discharge systems ensure material is available when and where it is needed. Plus, with the optional weigh scale package you can accurately track on-hand material so you know exactly what how much you are using and what you have available.
