Meridian Sand Silos

Available Downloads

Meridian Frac Sand Storage Info Sheet

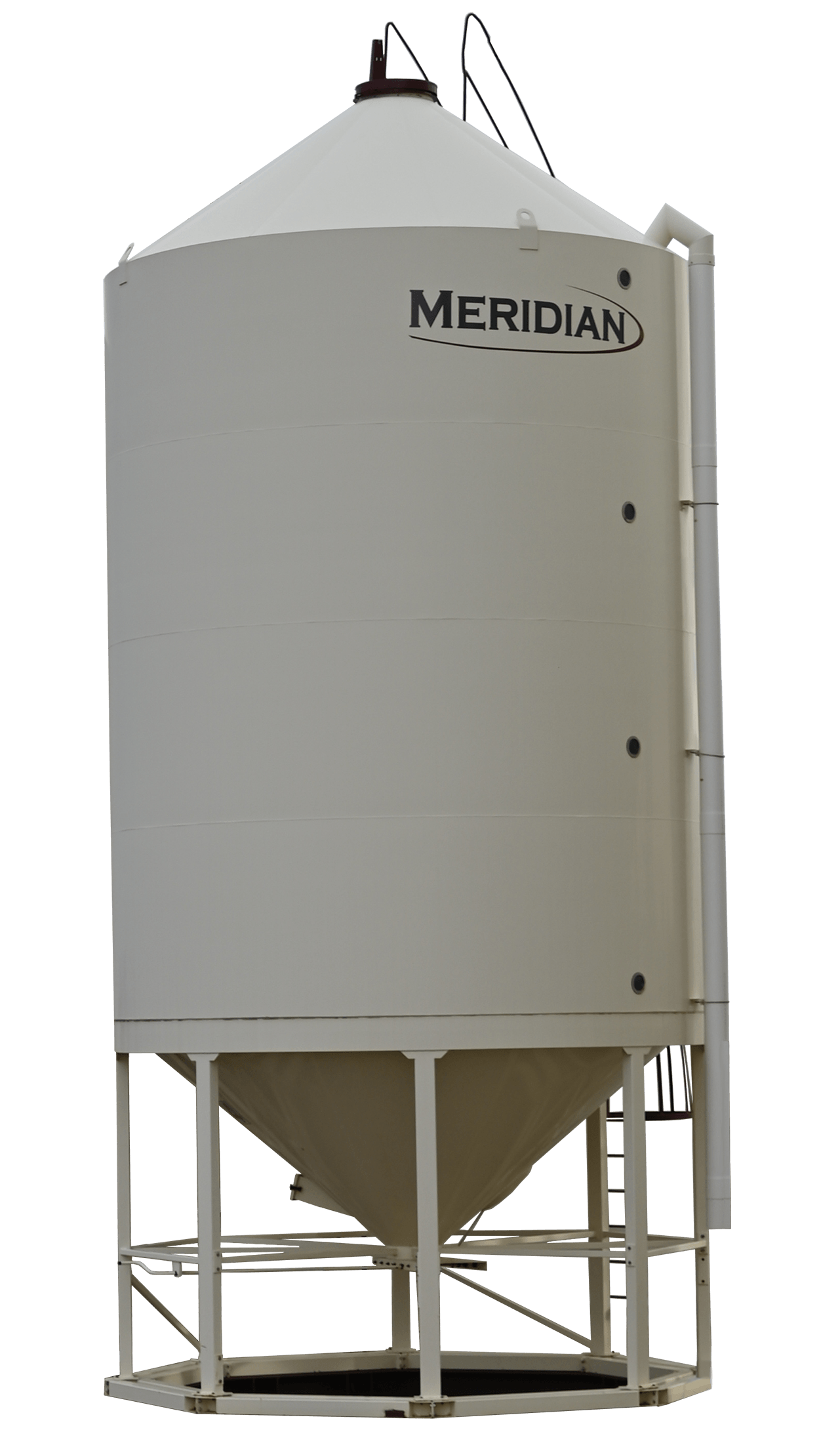

Meridian Sand SmoothWall Silos are engineered for the storage and handling of frac sand and other bulk sand products in demanding industrial environments. Designed for high-capacity applications, these silos help operations maintain inventory, support continuous material flow, and reduce the logistical challenges associated with large-volume sand storage.

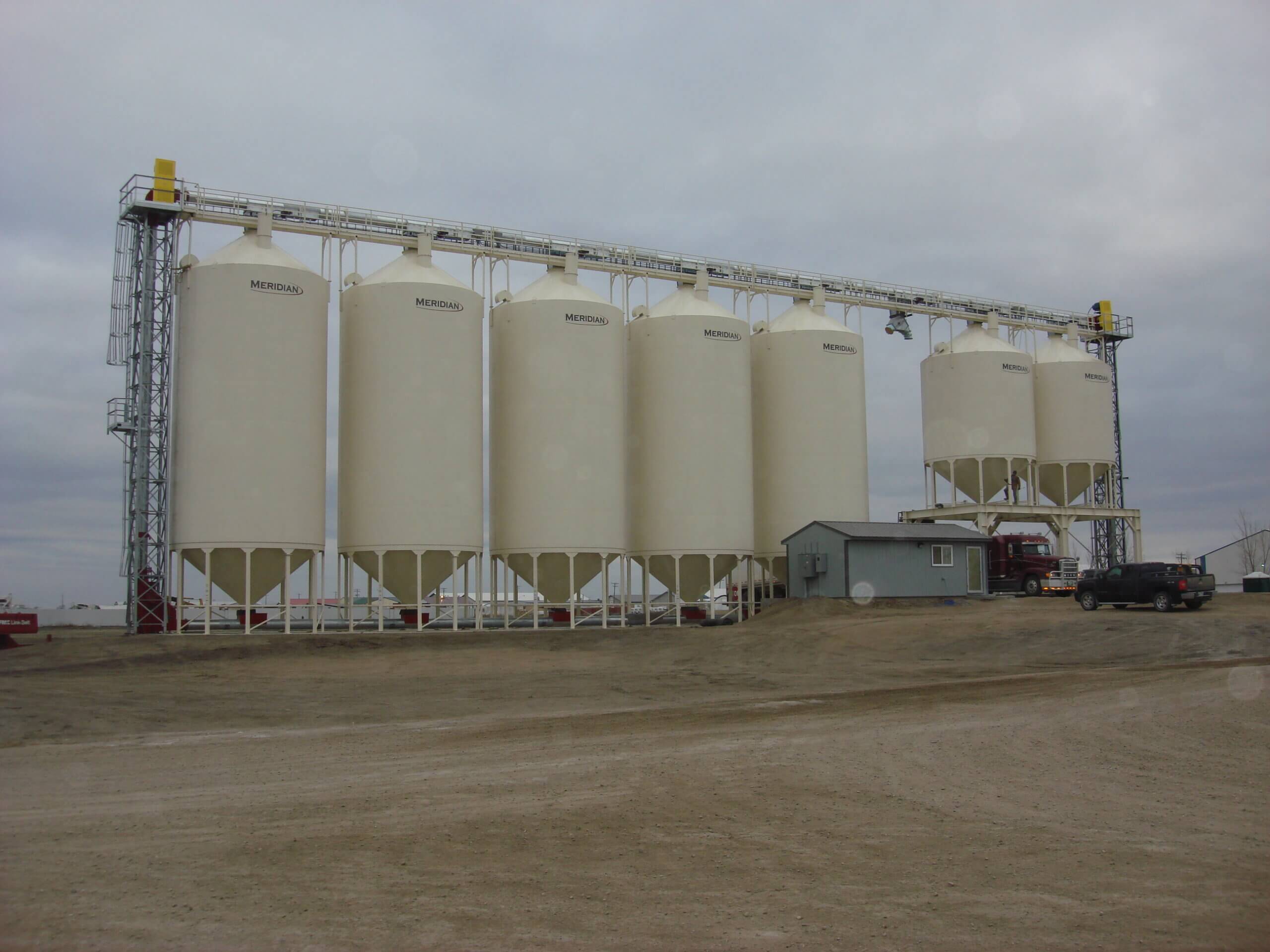

Built to handle dense, abrasive materials, Meridian SmoothWall Sand Silos are engineered around the specific requirements of the product type being stored. SmoothWall construction promotes reliable discharge and helps reduce material buildup, while robust steel construction and corrosion-resistant premium coatings provide long-term performance in challenging operating environments. Available in a range of capacities and configurations, Meridian can deliver complete storage systems including structures, loadout solutions, conveyors, and site-specific customizations.

Common Applications

Frac sand storage
Sand processing facilities
Industrial mineral storage

Model	Capacity (cu. ft)	Capacity (Tons)	Capacity (MT)
13.5ft Diameter
1412-40	2,213	107	97
1420-40	3,358	161	146
1425-40	4,073	195	177
1430-40	4,790	229	207
1435-40	5,506	263	238
16ft Diameter
1620-40	4,845	230	210
1625-40	5,851	282	256
1630-40	6,856	330	300
1635-40	7,860	378	350

Capacities are based on a sand density of 95lbs/cu.ft. These are common silo sizes, if your project requires a different size please reach out for a custom engineered solution.

Standard Features

24” Clearance under the Slide Gate
Heavy Duty design and build
Meridian Retractable Ladder with Safety Grip Rung
Min. 40 degree bottom cone and 35 degree roof cone
Powder Coat Finish

FAQ

Sand is a dense and abrasive material that places significantly higher loads on storage structures than many other bulk products. Meridian sand silos are engineered specifically for these loading conditions to support long-term structural performance.

No. While commonly used in frac sand applications, Meridian Sand Storage Silos can be engineered for a variety of industrial sand and mineral storage applications.

Storage capacity, discharge rates, loadout configuration, and traffic flow all play a role in loading performance. Meridian can configure systems to support efficient truck loading while reducing bottlenecks at the site by utilizing structures such as drive-thrus.
