Meridian manufcturingOn-Farm Horizontal Fuel Tanks

Meridian On-Farm Horizontal Fuel Tanks

Meridian sells through a network of Authorized dealers. If no dealer is selected, we will reach out with more information
Meridian Manufacturing: On-Farm Horizontal Fuel Tanks

Available Downloads

  • Meridian Econo Double Walled Fuel Tanks

Reliable fuel storage starts with choosing the right tank for your operation. Meridian Horizontal Fuel Tanks are available in two product lines: the Horizontal Double Wall Fuel Tank for producers looking for maximum capacity and a wide range of options, and the Econo Double Wall Fuel Tank for those seeking dependable, ULC-approved fuel storage at an economical price point.

Both product lines provide double-wall construction with 100% secondary containment and are built to help protect your fuel investment while supporting safe, reliable on-farm storage. The Horizontal Double Wall series is available in capacities from 2,300 L to 100,000 L and offers a broad selection of turnkey options, including pumps, hose reels, meters, and accessories. The Econo Double Wall series provides the same dependable double-wall protection in a simplified package that’s ideal for producers looking to add or expand fuel storage while managing their investment. Both feature Meridian’s premium exterior finish for long-lasting durability in demanding farm environments and are designed to keep your operation fueled and ready when work needs to get done.

Canadian Horizontal Fuel Tanks

ModelVolumeDiameterLengthWeight
Horizontal Double Wall Fuel Tanks
MDW-23002,310L51″7’5″601kg | 1325lb
MDW-4595
(70/30 Split)		3,241L/1,351L51″13’4″978kg | 2156lb
MDW-46004,607L51″13’4″928kg | 2046lb
MDW-100009,972L64″18’9″2,021kg | 4456lb
MDW-1500014,900L90″19’5″4,190kg | 9237lb
MDW-2500024,890L90″27’8″5,373kg | 11845lb
MDW-3500038,846L90″36’4″7,860kg | 17328lb
MDW-5000050,015L119″31’5″9,422kg | 20772lb
MDW-6500065,100L119″36’0″kg | 0lb
MDW-7500075,800L119″43’6″kg | 0lb
MDW-100000100,000L127″49’6″12,756kg | 28122lb
Econo Horizontal Double Wall Fuel Tanks
EDW-1500014,900L90″12’5″3,197kg | 7048lb
EDW-2500024,890L90″20’8″4,244kg | 9356lb
EDW-3500035,051L90″29’4″5,445kg | 12004lb

U.S. Horizontal Fuel Tanks

Item#VolumeDiameterLengthWeight
Horizontal Double Wall Fuel Tanks
64041500US gal48″6′ 5″885lb
640421,000US gal64″6′ 5″1,750lb
640432,000US gal64″12′ 6″3,390lb
640574,000US gal76″20′6,130lb
640584,000US gal
75/25 split		76″20′6,940lb
640605,000US gal76″22′7,100lb
640595,000US gal
80/20 split		76″22′7,915lb
371488,500US gal10′15′12,625lb
6408510,000US gal10′18′14,185lb
6407312,000US gal10′22′16,250lb
6407415,000US gal10′26′18,840lb
Horizontal Single Wall Fuel Tanks
60629560US gal48″74″510lb
606301,000US gal64″74″716lb
606312,000US gal64″148″1,225lb
Econo Horizontal Double Wall Tanks are not available in the U.S. 50/50, 60/40, and 70/30 split available on select models.Horizontal Single Wall Tanks are not available in Canada

Common Features (0 features)

Canadian Horizontal Double Wall Tanks

Canadian Econo Horizontal Double Wall Tanks

U.S. Horizontal Double Wall Fuel Tanks

U.S. Horizontal Single Wall Fuel Tanks

Common Options (0 selected)

Canadian Horizontal Double Wall Tanks

  • Optional fork lift pockets & bollards

Canadian Econo Horizontal Double Wall Tanks

U.S. Horizontal Double Wall Fuel Tanks

U.S. Horizontal Single Wall Fuel Tanks

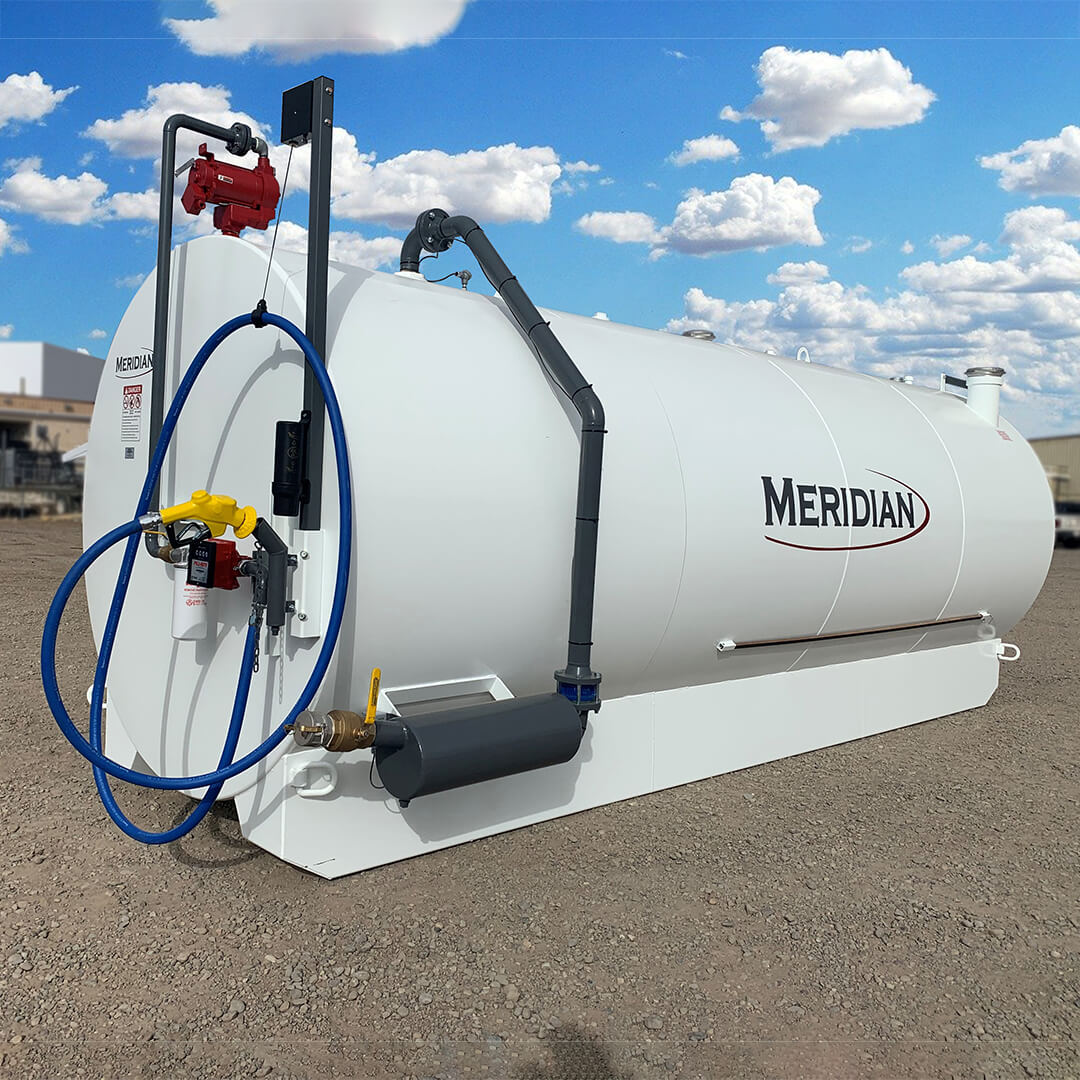

Meridian Econo double-wall horizontal fuel tank with pump and hose

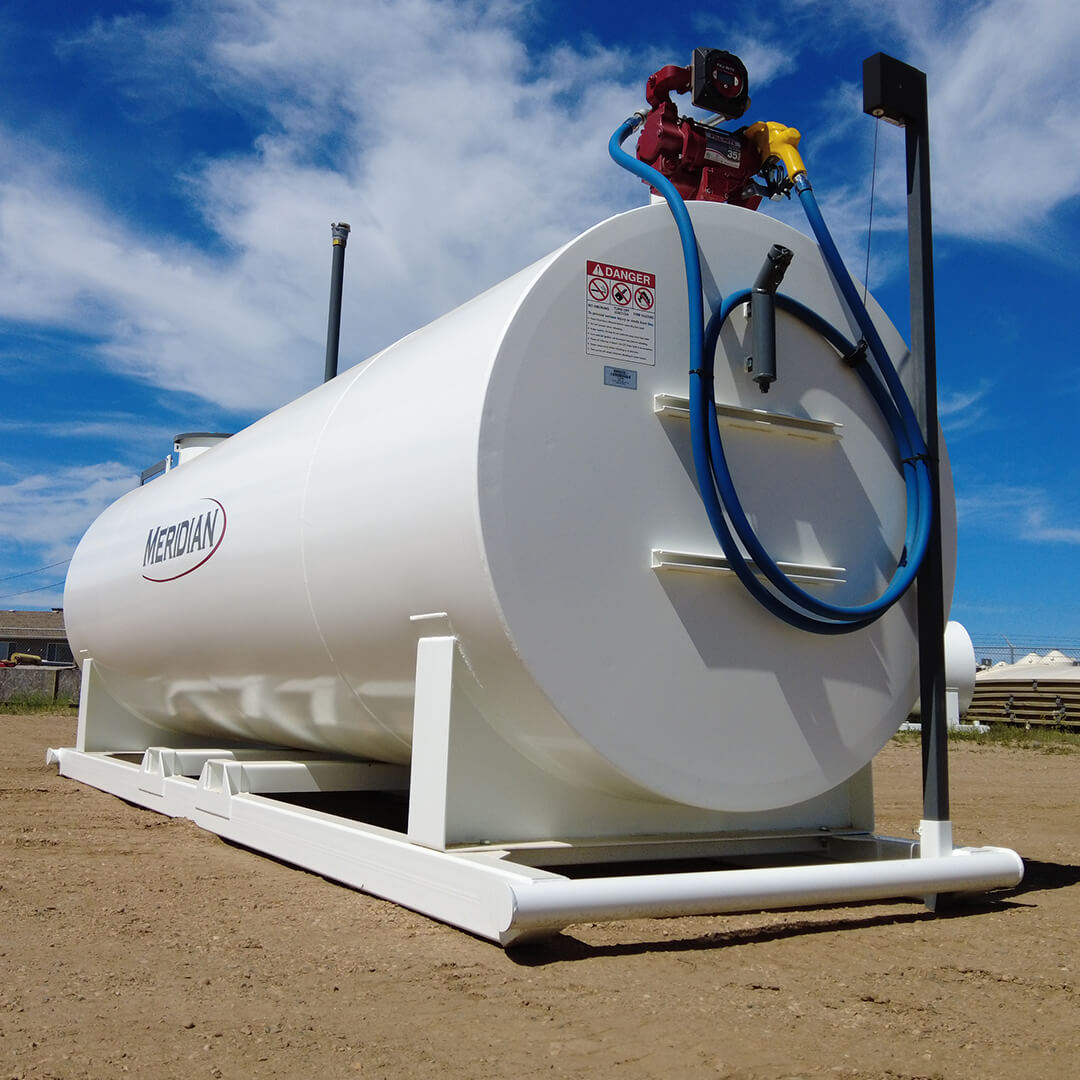

Meridian double-wall horizontal fuel tank with pump and hose

FAQ

On-farm fuel storage helps reduce downtime, improve fueling efficiency, and maintain a reliable fuel supply during busy periods such as seeding and harvest. It can also reduce the frequency of fuel deliveries and improve fleet management.

Double wall fuel tanks provide built-in secondary containment by surrounding the primary tank with an outer wall. This design helps protect against leaks and supports compliance with fuel storage requirements.

Yes. Meridian Horizontal Fuel Tanks are commonly used for diesel and gasoline storage and can be configured for a variety of approved liquid storage applications. They are also available in various split tank configurations allowing you to have one tank with separate internal diesel and gasoline compartments and individual pumps.

Available options include pumps, hose reels, filters, meters, and other dispensing equipment. These accessories can be integrated into a turnkey package that arrives ready for use.

Powder coating provides a durable finish that resists corrosion, weather, and everyday wear better than traditional wet paint. This helps maintain the appearance and performance of the tank throughout years of outdoor service. Additionally, the powder coat is fully cured instantly when it leaves the oven unlike a wet paint process.
