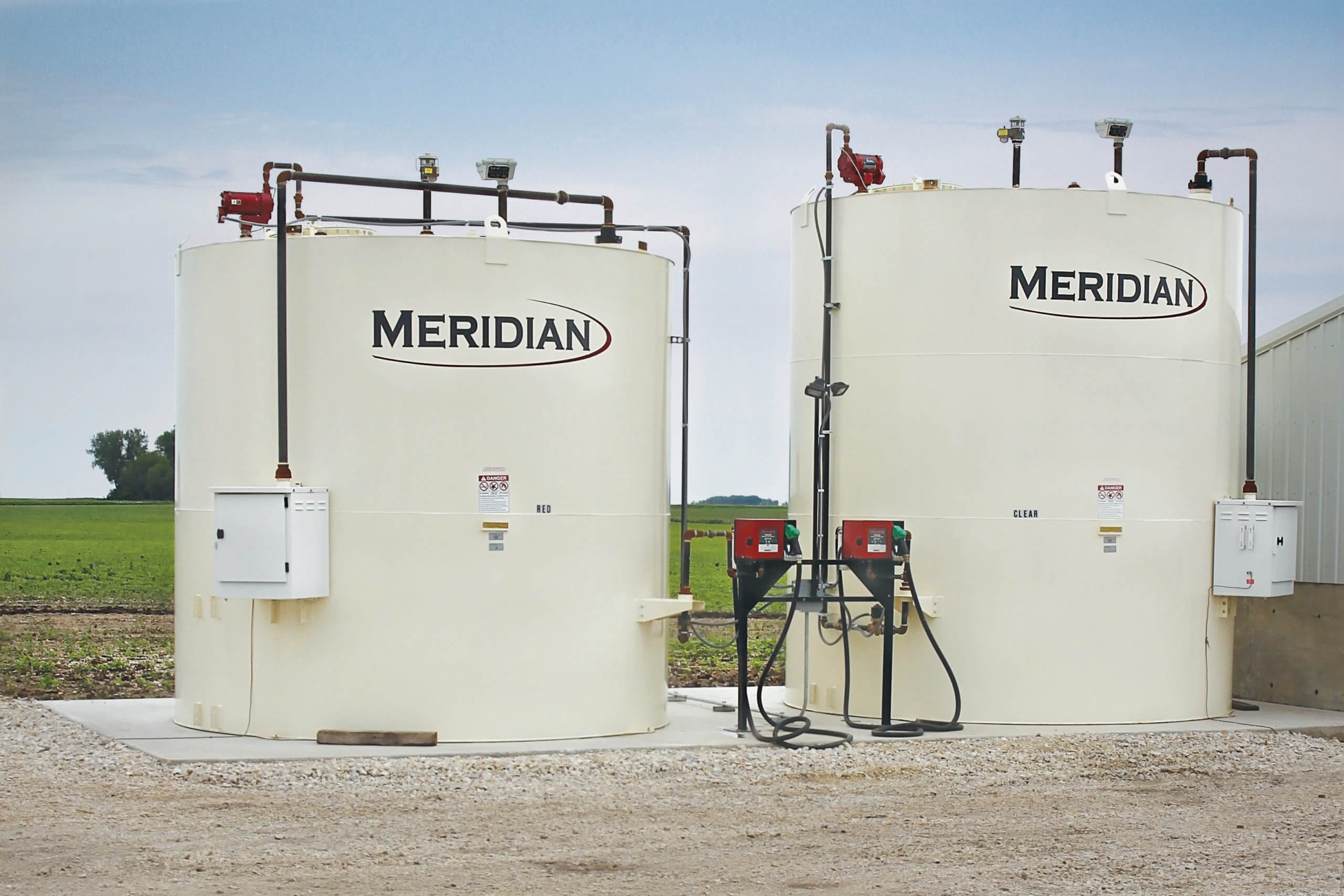

Meridian manufcturingOn-Farm Vertical Fuel Tanks

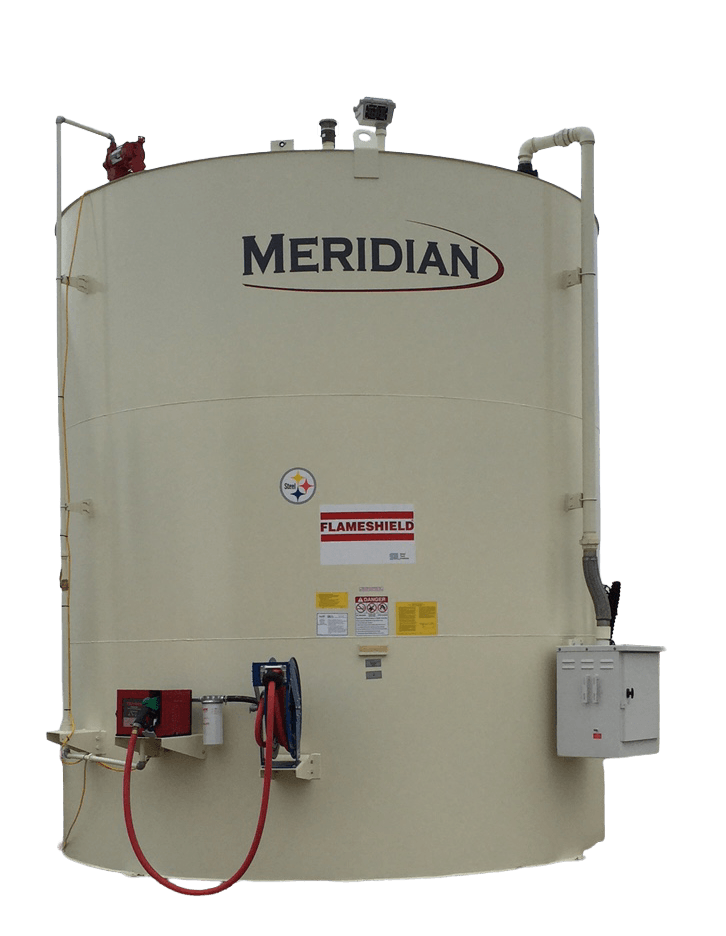

Meridian On-Farm Vertical Fuel Tanks

Meridian sells through a network of Authorized dealers. If no dealer is selected, we will reach out with more information
Meridian Manufacturing: On-Farm Vertical Fuel Tanks

Available Downloads

  • Canadian On-Farm Vertical Fuel Tanks

For farms looking to maximize fuel storage without taking up additional yard space, Meridian Vertical Fuel Tanks offer a practical and efficient solution. Their compact footprint allows producers to store more fuel in less space, helping ensure equipment stays fueled and ready during seeding, harvest, and other critical operating windows.

Whether you’re expanding on-farm fuel capacity or upgrading an existing storage setup, Vertical Fuel Tanks provide dependable storage while making efficient use of available space. Built with double wall construction that offers 100% secondary containment, they offer peace of mind alongside reliable performance. Meridian’s premium finish helps protect against the elements, ensuring your fuel storage investment is built for years of outdoor service.

Canadian On-Farm Vertical Fuel Tanks are currently available in volumes from 50,000L to 125,000L in a dual wall configuration only. Top mounted pump configuration is only available up to 65,000L. For more information please reach out to your nearest Meridian Fuel Tank Dealer.

U.S. Vertical Fuel Tanks

CapacityDiameterEave HeightWeight
Double Wall Tanks
8,500 US gal12’11’9,875lbs
10,000 US gal12’13’11,040lbs
12,000 US gal12’15’12,170lbs
15,000 US gal14’15’14,275lbs
Single Wall Tanks
10,000 US gal12’13’6,025lbs
12,000 US gal12’15’6,610lbs
15,000 US gal12’19’7,800lbs
20,000 US gal13’ 6’’20’9,490lbs
25,000 US gal13’ 6’’25’11,035lbs
30,000 US gal13’ 6’’30’12,675lbs

Canadian Vertical Fuel Tanks

CapacityDiameterEave HeightWeight
Vertical Double Wall Tanks
50,410L13′13’6″7,488kg | 16,510lbs
65,350L13′17’6″8,059kg | 17,770lbs
74,690L13′20′8,413kg | 18,550lbs
93,360L13′25′9,125kg | 20,120lbs
126,970L13′34′10,404kg | 22,940lbs
Vertical Single Wall Tanks
50,410L13′13’6″4,084kg | 9,005lbs
65,350L13′17’6″4,839kg | 10,670lbs
74,690L13′20′5,3311kg | 11,711lbs
93,360L13′25′6,255kg | 13,793lbs
126,970L13′34′7,954kg | 17,539lbs

Standard Features

  • Additional Spare Fittings
  • Heavy Gauge Steel Construction
  • Lifting Lugs
  • Premium Powder-Coat Finish
  • Primary & Secondary Emergency Vents
  • Secondary Containment (double wall tanks only)

Common Options (0 selected)

FAQ

Vertical fuel tanks offer greater storage capacity within a smaller footprint, making them a practical choice when yard space is limited or when additional fuel storage is needed without expanding the storage area.

Yes. Vertical fuel tanks are commonly used on farms to store diesel and other approved fuels, providing convenient access to fuel while helping maintain an adequate supply during busy seasons.

Double wall construction provides built-in secondary containment by surrounding the primary storage tank with an outer wall. This added layer of protection helps support regulatory compliance and environmental stewardship.

Meridian's premium finish provides enhanced resistance to corrosion, weather exposure, and everyday wear compared to conventional paint, helping maintain the appearance and longevity of the tank through years of outdoor service.
Meridian Products: On-Farm Horizontal Fuel TanksOn-Farm Horizontal Fuel Tanks

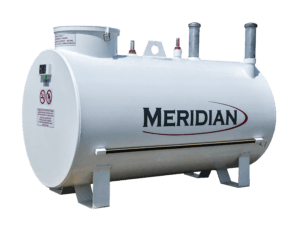

Meridian Products: On-Farm Used Oil TanksOn-Farm Used Oil Tanks
