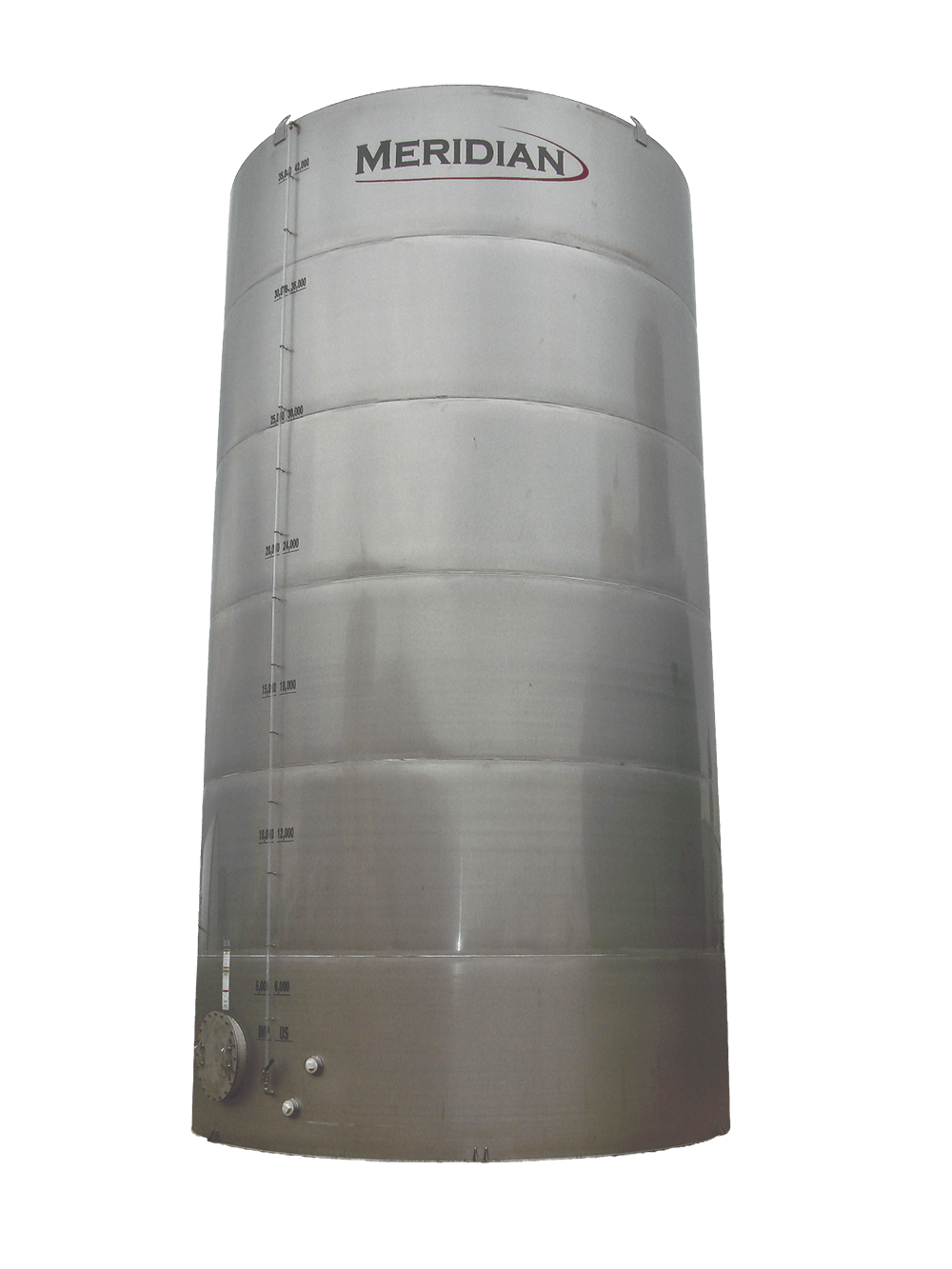

Meridian Manufacturing: Stainless Steel Tanks

Meridian Stainless Steel Storage Tanks provide corrosion-resistant liquid storage for industrial applications including food production, plastics manufacturing, and energy sector operations. Built from high-quality 304L or 316 stainless steel, depending on the application, these tanks are designed to maintain product integrity while delivering long service life in demanding processing and storage environments.

Meridian offers a full line of stainless steel liquid tanks to support a wide range of industrial storage applications. Interior seams on liquid tanks are back welded and pressure tested to help ensure containment integrity and long-term performance. Tanks also undergo a wash and treatment process, including re-passivation, which removes free iron from the metal surface to help prevent rust and corrosion. Flat bottom designs provide stable, large-capacity liquid storage, while multiple sizes and configurations allow tanks to be integrated into new or existing industrial systems.

Common Applications

Industrial water storage
Food processing liquids
Liquid storage for plastics manufacturing
Energy sector liquid storage

Model	Capacity (L)	Capacity (MT)	Diameter	Height
12ft Diameter
SS1215	49,160	63	12’	18’3’’
SS1220	65,175	85	12’	22’3”
SS1225	81,187	105	12’	27’3”
SS1230	97,200	126	12’	32’3”
SS1235	113,213	147	12’	37’3”
SS1240	129,226	168	12’	42’3”
13ft Diameter
SS1315	56,910	73	13’	16’3’’
SS1320	75,397	97	13’	23’5’’
SS1325	93,906	121	13’	28’5’’
SS1330	112,415	145	13’	33’5’’
SS1335	130,904	169	13’	38’5’’
SS1340	149,394	193	13’	43’5’’
14ft Diameter
SS1425	110,764	144	14’	27’5”
SS1430	132,559	172	14’	32’5”
SS1435	154,354	200	14’	37’5”
SS1440	176,149	228	14’	42’5”
16ft Diameter
SS1620	116,540	151	16’	22’7”
SS1625	145,007	188	16’	27’7”
SS1630	173,474	225	16	32’7”
SS1635	201,942	262	16	37’7”
SS1640	230,409	299	16	42’7”
18ft Diameter
SS1830	219,979	285	18	32’9”
SS1835	256,007	332	18	37’9”
SS1840	292,036	379	18	42’9”
SS1850	364,094	472	18	52’9”

Not all sizes available in all regions. Tonnes are based on 13 lbs/Imp Gallon

Standard Features

10 Degree Slope on dome
2 Year Manufacturer’s Warranty
24” Manway for easy access to interior of tank
304L Stainless Steel Construction
4” Vented Dome Cap
Lifting Lugs
Two 4” FPT Discharge and Recirculating Ports
Volume Labeled Sight Gauge

Common Options (0 selected)

Fully Insulated

FAQ

Re-passivation is a treatment process that removes free iron from the stainless steel surface using an acid solution to help improve corrosion resistance and prevent rust formation.

Back welding and pressure testing help ensure tank integrity, reduce the risk of leaks, and support long-term performance in industrial liquid storage applications.

Yes. Tanks can be configured with various capacities, fittings, access options, and connection layouts to support specific operational requirements.
