Meridian manufcturingVertical Fuel Tanks

Meridian Vertical Fuel Tanks

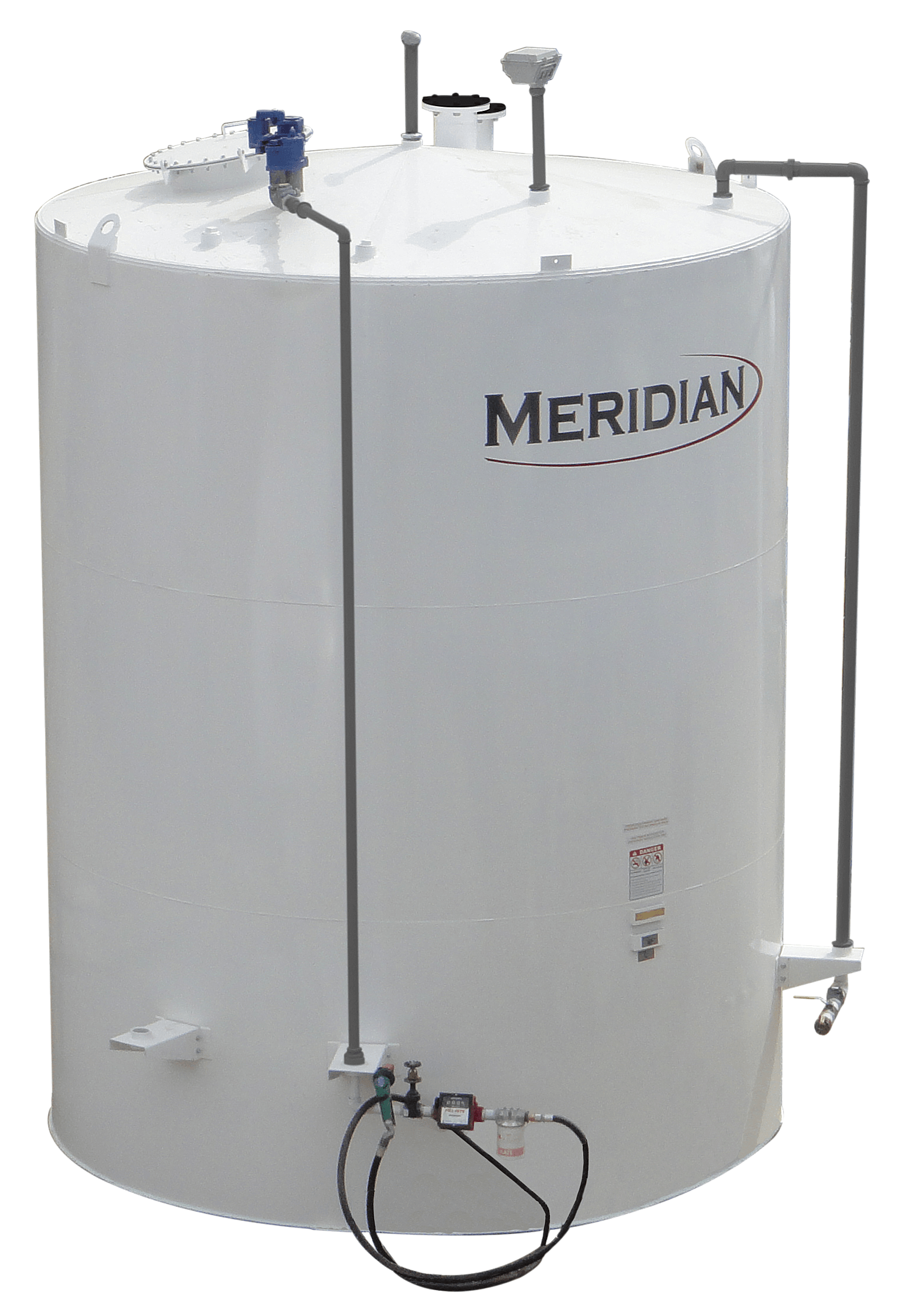

Meridian Manufacturing: Vertical Fuel Tanks

Fuel is only valuable when it is available where and when your operation needs it. Meridian Vertical Fuel Tanks provide high-capacity fuel storage in a compact footprint, helping industrial facilities, fleet operations, construction sites, and resource-based industries maintain fuel supply while maximizing available site space. Available in both single-wall and double-wall configurations, these tanks are engineered to support operational reliability while meeting applicable fuel storage requirements.

Designed for commercial and industrial fuel storage applications, Meridian Vertical Fuel Tanks combine large storage capacity with a smaller footprint than many traditional horizontal tank layouts. Tanks are available in capacities up to 125,000 litres and can be configured with dispensing equipment, platforms, staircases, walkways, and other site-specific features. Built to meet applicable UL and ULC standards, Meridian fuel storage systems are engineered around the operational, safety, and fueling requirements of each facility.

Common Applications

Fleet fueling systems
Industrial facilities
Construction and infrastructure projects
Backup fuel storage

Capacity	Diameter	Eave Height	Weight
Double Wall Tanks
8,500 US gal	12’	11’	9,875lbs
10,000 US gal	12’	13’	11,040lbs
12,000 US gal	12’	15’	12,170lbs
15,000 US gal	14’	15’	14,275lbs
Single Wall Tanks
10,000 US gal	12’	13’	6,025lbs
12,000 US gal	12’	15’	6,610lbs
15,000 US gal	12’	19’	7,800lbs
20,000 US gal	13’ 6’’	20’	9,490lbs
25,000 US gal	13’ 6’’	25’	11,035lbs
30,000 US gal	13’ 6’’	30’	12,675lbs

Capacity	Diameter	Eave Height	Weight
Vertical Double Wall Tanks
50,410L	13′	13’6″	7,488kg \| 16,510lbs
65,350L	13′	17’6″	8,059kg \| 17,770lbs
74,690L	13′	20′	8,413kg \| 18,550lbs
93,360L	13′	25′	9,125kg \| 20,120lbs
126,970L	13′	34′	10,404kg \| 22,940lbs
Vertical Single Wall Tanks
50,410L	13′	13’6″	4,084kg \| 9,005lbs
65,350L	13′	17’6″	4,839kg \| 10,670lbs
74,690L	13′	20′	5,3311kg \| 11,711lbs
93,360L	13′	25′	6,255kg \| 13,793lbs
126,970L	13′	34′	7,954kg \| 17,539lbs

Standard Features

Additional Spare Fittings
Heavy Gauge Steel Construction
Lifting Lugs
Premium Powder-Coat Finish
Primary & Secondary Emergency Vents
Secondary Containment (double wall tanks only)
UL-142 Certified

FAQ

Vertical tanks are often selected when available site space is limited but fuel storage requirements remain high. Their smaller footprint allows facilities to maximize storage capacity while preserving valuable yard space for operations, traffic flow, and equipment access.

Yes. Meridian regularly works with facility owners, engineers, contractors, and project teams to integrate fuel storage into broader site developments. Platforms, access systems, walkways, and other supporting structures can be incorporated to align with operational requirements.

Double-wall tanks provide integrated secondary containment within the tank design. Many operations choose double-wall configurations to support environmental protection objectives and comply with site-specific regulations and storage requirements.

Fuel type, required storage volume, dispensing requirements, site layout, environmental considerations, anticipated expansion plans, and local regulatory requirements all play an important role in determining the appropriate storage solution.
